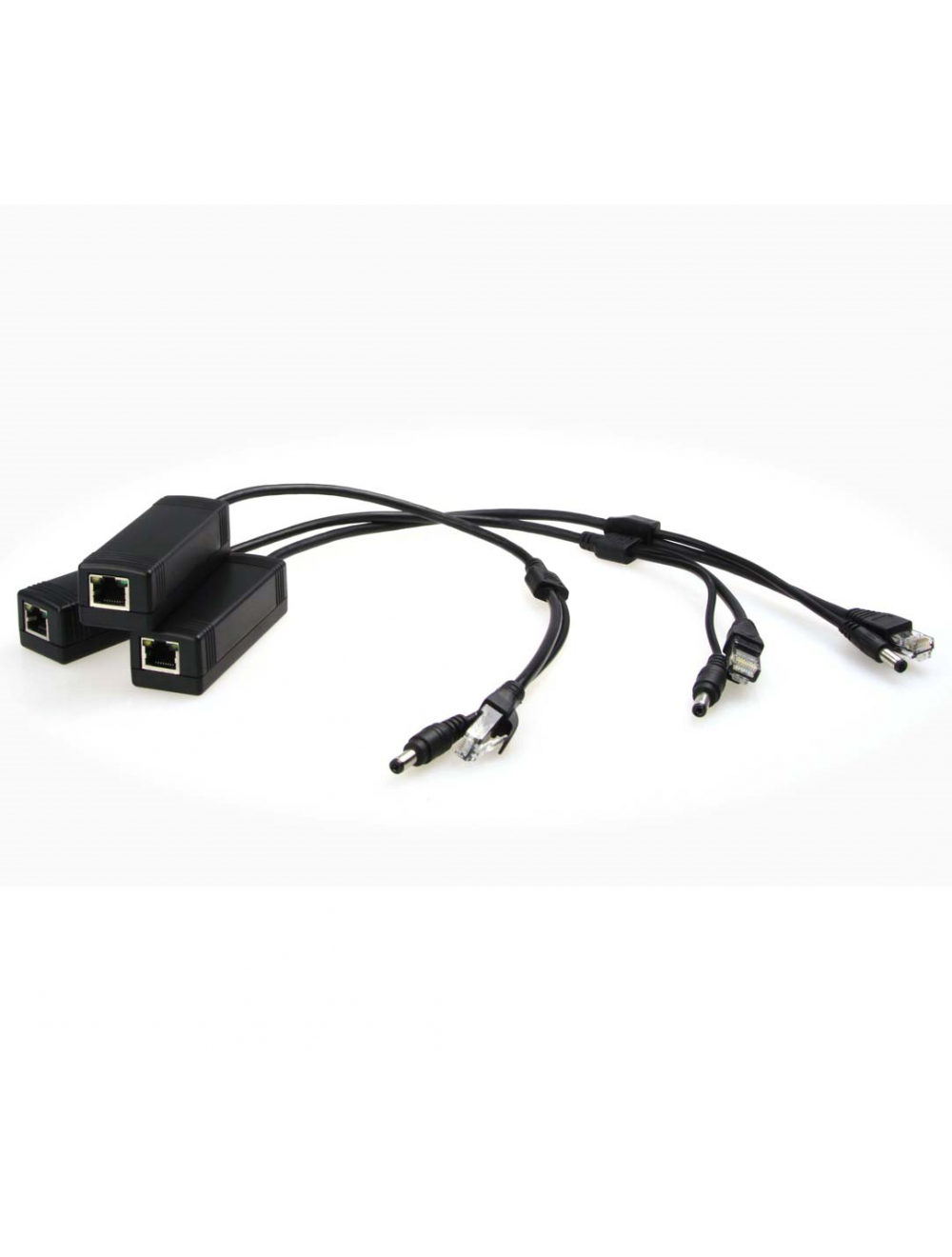

POE Splitter PD3201-AT
Dit product is EOL. Alternatief is de PD5202-AT
Dit product is EOL. Alternatief is de PD5202-AT
Support 10/100M Data Transmission
DC12V output, used for various small network devices.
Circuit Insulation blocking, effective protection of powered device.
Application
◆HD monitor transmission and power supply
◆Wireless AP layout transmission and power supply
◆Network telephone transmission , intelligent house and home system
◆Intelligent transportation supervisory system(ITS)
◆ High-speed Way supervisory/Tele-Communication System
◆ Security protection system, TV medical treatment
◆ Long-distance Muti-media Schooling, Campus monitoring
◆ Long-distance broadcast television transmission system
◆ High-building Security Protection, Military Tele-Com projects
Order Information
Model: PD3201-at
Description: 10/100M PoE Splitter, IEEE 802.3at, DC12V output. Standard power output is 20W. Max value is up to 22W.
Power Pin Assignment: Support both Mid-span and End-span
Product Size
88x30x25mm(LxWxd), cable length:250mm
SKU | PD3201-AT |
---|---|
Merk | Eupart |
Product Name | 10/100M PoE Splitter Cable |
Product Model | PD3201-at |
Connector Type | 1x RJ45 input port 1x RJ45 output port 1x DC output port |
Network Medium | Cat5 (UTP) or more |
Network Protocol | IEEE 802.3 i 10 BASE-T IEEE 802.3 u 100 BASE-TX IEEE 802.3 x Flow Control IEEE 802.3 at Power over Ethernet |
PoE Standard | IEEE802.3at |
PoE Power Supply Type | 1/2(+),3/6(-);4/5(+),7/8(-) power supply |
Certifications | CE,FCC,ROHS |
Product Size | 505x35x30mm |
Working Environment | Operating Temperature: 0~55℃; Storage Temperature: -20~70℃; Operation Humidity: 90%, non-condensing; Storage Humidity: 95%, non-condensing |
