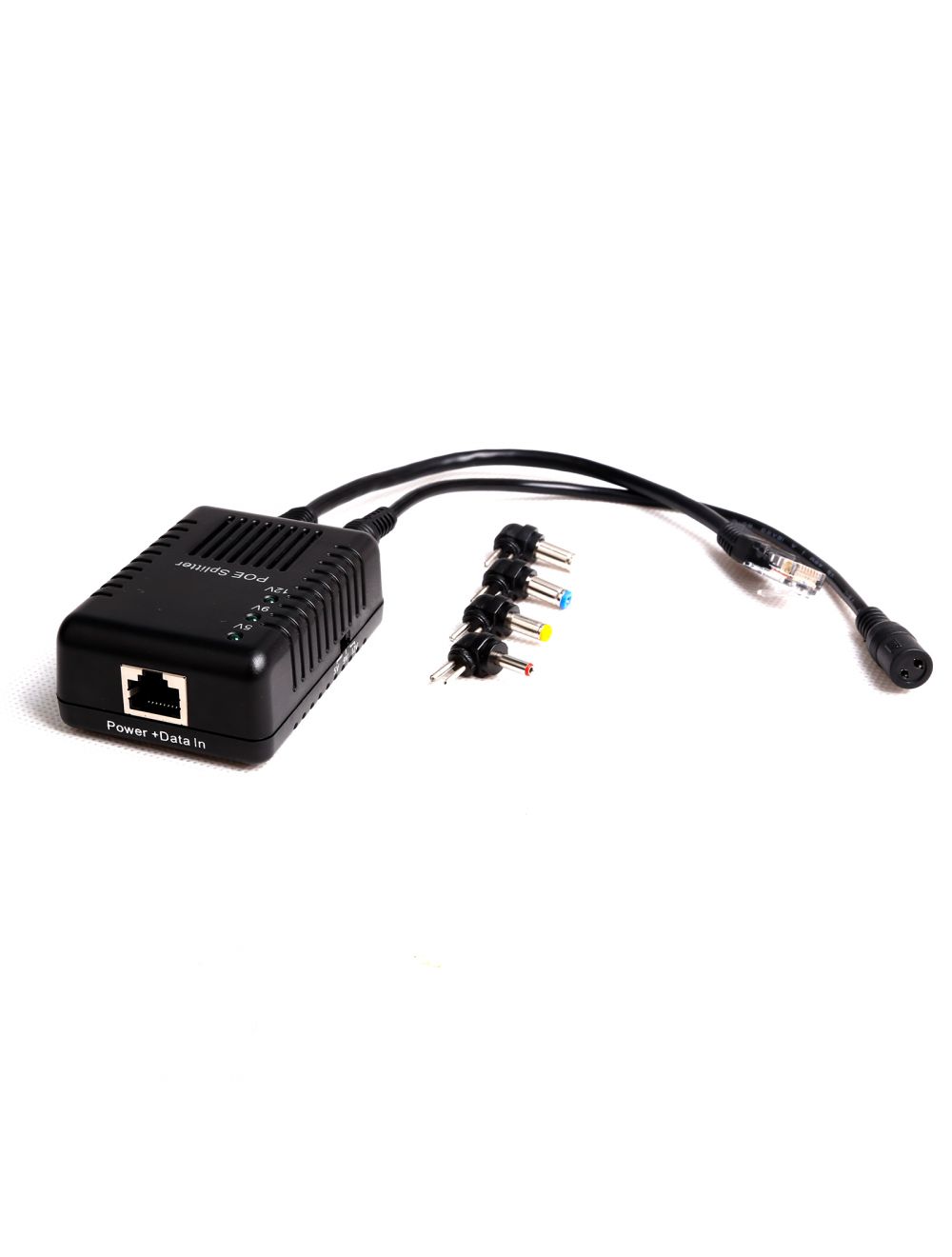

Foscam POE5912 splitter

€ 24,95
POE5912 splitter POE splitter
Beschikbaarheid: Op voorraad

POE5912 POE splitter
Power Output: 5V,9V,12V
IEEE 802.3af

Meer informatie
Merk Foscam
EANcode 6954836090589
Model PoE5912
Transmission Rate 10/100 Mbps
Regulatory IEEE 802.3at
IEEE 802.3af
Input Power Voltage 48Vdc/0.3A
Output Voltage 5V(2A),9V(1.1A),12V(1A)
Connector Shielded RJ-45, EIA 568A and 568B
PoE pin definition 1/2(+), 3/6(–) or 4/5(+), 7/8(-)
Protection Design Safeguards network device with short circuit protection
Dimension 80 mm x 55 mm x 31 mm
DC Power Plug DC 5.5*2.5*12 mm (White) / 5.5*2.1*12 mm (Blue) /
4.8*1.7*12mm (Yellow) / 3.5*1.3*12mm (Red)
Jumper Cable DC 2.1x5.5x 9.5mm, (L-300mm)
Operating Humidity -10 to 45°C
Weight 76g
Certification CE, FCC, RoHS, EN 60950:2006
